超窄边液晶拼接屏

Super narrow bezel LCD video wall

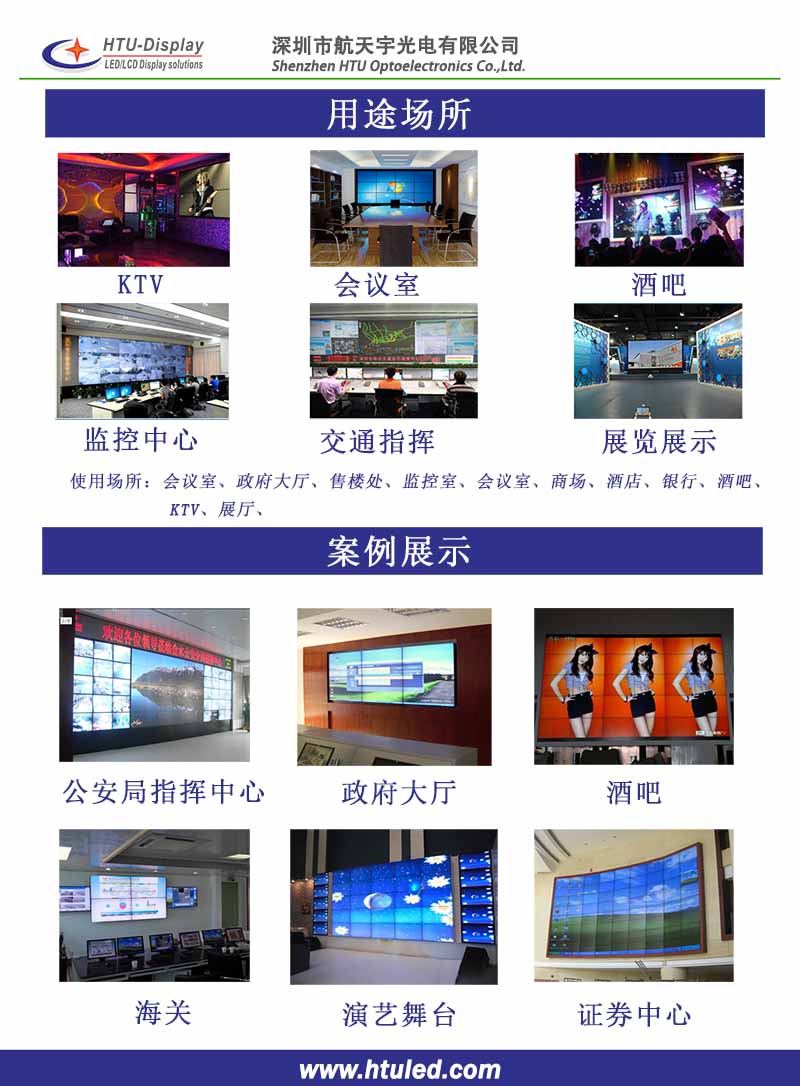

应用领域：
1、安防：视频监控；
2、政府机构：应急指挥、远程调度；
3、广播电台：频道监控；
4、商业显示：商场、大型超市、专卖店等新品发布、产品促销；
5、企事业单位：形象宣传、产品展示；
6、交通、餐饮、娱乐、医疗等领域；

Application areas:

1, security: video surveillance;

2, government agencies: emergency command, remote scheduling;

3, radio station: channel monitoring;

4, commercial display: shopping malls, large supermarkets, exclusive stores and other new product launches, product promotions;

5, enterprises and institutions: image publicity, product display;

6, transportation, catering, entertainment, medical and other fields;

液晶拼接屏，又称LCD拼接屏、LCD大屏幕、电视墙、视频墙、液晶拼接、大屏幕、液晶屏、高清屏。目前液晶面板品牌主要有三星、LG、京东方（BOE），最常用的是三星液晶屏、LG液晶屏，规格尺寸主要有46寸拼接屏、47寸拼接屏、49寸拼接屏、55寸拼接屏。根据拼接缝隙的宽窄程度，有5.5mm拼缝、3.5mm拼缝、1.8mm拼缝、1.7mm拼缝。

LCD Video Wall, also known as LCD splicing screen, LCD large screen, TV wall, video wall, liquid crystal mosaic, large screen, LCD screen, HD screen. At present, the main brands of LCD panel are Samsung, LG and BOE. The most commonly used are Samsung LCD screen and LG LCD screen. The size of the LCD panel is mainly 46 inch splicing screen, 47 inch splice screen, 49 inch splice screen, and 55 inch splice screen. According to the width of splicing gap, there are narrow bezel 5.5mm, narrow bezel 3.5mm, narrow bezel 1.8mm and narrow bezel 1.7mm.

HTU-P553501采用LG原装进口工业级液晶面板，物理拼缝仅3.5mm,行业领先的直下式 LED 背光源，色彩还原度好，图像逼真，点状超密集分布，背光亮度均匀。亮场明亮、节能、超高光能效、暗场无漏光、超高对比度、8ms 急速响应，图像更流畅。具有节能、环保、无辐射，寿命长的特性。支持 7*24 小时不间断工作，适应各种需长时间开机的工作环境。

HTU-P553501 uses LG's original imported industrial LCD panel, the physical spelt is only 3.5mm, the industry leading straight down LED backlight, the color reduction degree is good, the image is realistic, the dot shape is super dense distribution and the backlight brightness is uniform. Bright field, energy saving, super high light efficiency, dark field no leakage, ultra high contrast, 8ms rapid response, image more fluent. It has the characteristics of energy saving, environmental protection, no radiation and long life. Support 7*24 hours to work continuously, adapt to all kinds of working environment requiring long time to start.

主要特点：

高可靠性，超长寿命；

高亮度，高对比度，高清晰度；

LED背光，分辨率1920*1080；

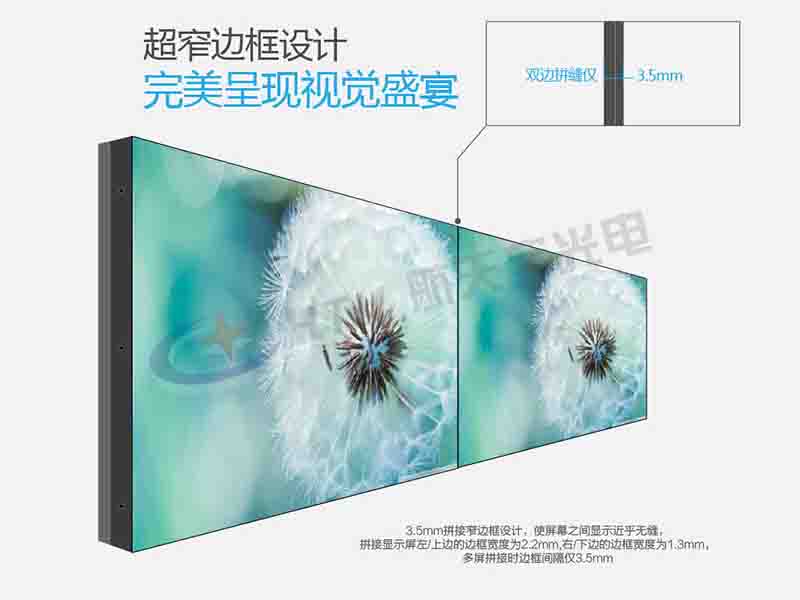

超窄边设计，纯平面显示，更宽视角；

亮度均匀，影响稳定不闪烁，更好的色彩饱和度。

Main features:

High reliability,long life;

LED backlight,resolution 1920*1080;

High brightness,high contrast,high-definition;

Super narrow bezel design,pure flat-screen display,wider viewing angle;

Uniform brightness,image stabilization without blink,better color saturation.
