深圳市航天宇光电有限公司

因为专注 所以专业

高端定制,创意显示




电子海报屏

HTU-EPoster

像素间距:1.7mm

航天宇公司的电子海报屏(HTU-EPoster)是专为商业显示研发的LED屏幕,又称镜子屏。HTU-EPoster使您能够通过RJ45WiFi3GUSBHDMIPCAndroid设备连接起来;HTU-EPoster可以壁挂安装、立式安装、倾斜安装、吊装,并且可以多块屏体拼接。超薄轻便,更好的可折叠支架,安装快捷,方便的前维护;清晰度高,无缝显示,可完美呈现播放内容;

HTU-EPoster screen from HTU company is LED screen developed for commercial display., also known as a mirror screen. HTU-EPoster enables you to connect to PC or Android devices through RJ45, WiFi, 3G, USB or HDMIHTU-EPoster can be Wall-mounting, Bracket standingBase standing installationgHangingmulti-screen cascade, and can be spliced with many screensUltra thin and light, better folding support, fast and convenient maintenance, high definition, seamless display, and perfect presentation of playback content;


电子海报屏HTU-EPoster LED Display


产品特点(Product Features:

多种连接方式:通过RJ45WiFi3GUSBHDMIPCAndroid设备连接起来;

清晰度高,无缝显示,可完美呈现播放内容;

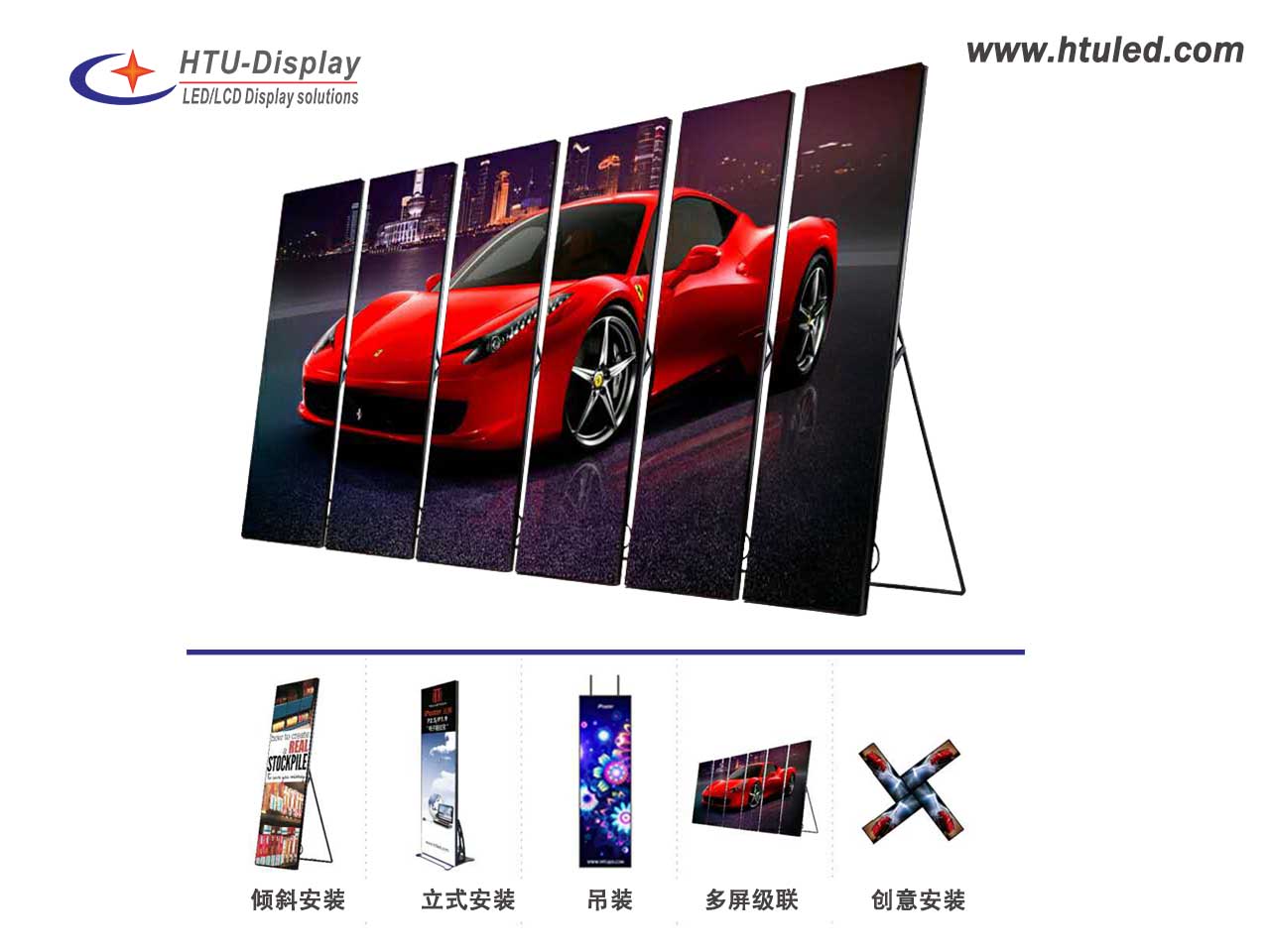

多种安装方式:壁挂安装、立式安装、倾斜安装、吊装,并且可以多块屏体拼接;

安装快捷、维修方便;

超薄轻便,更好的可折叠支架;

Multiple connections:connect to PC or Android devices through RJ45, WiFi, 3G, USB or HDMI

Wall-mounting, Bracket standingBase standing installationgHangingmulti-screen cascade, and can be spliced with many screens

high definition, seamless display, and perfect presentation of playback content

Quick installation and convenient maintenance

Ultra thin and light, better folding support



应用(Application:

电子海报屏可应用于以下领域:电视演播室,赌场,艺术品,建筑、会议室、办公楼、大厅、零售中心、餐厅、酒店、购物中心的广告和信息显示、公共设施、会展中心、演出、租赁和广告中心,博物馆,教堂,运输和公共信息显示系统。

HTU-EPoster can be used in below fields: TV studio, Casino, Artwork, Architecture,Conference and meeting rooms, office building, lobbies, Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.


LED 电子海报屏

LED Electronic   Poster Screen

型号

Module No.

HTU-EP2.5

型号

Module No.

HTU-EP1.7

像素间距

Pixel Pitch

2.571 mm

像素间距

Pixel Pitch

1.79   mm

模组尺寸

Module Size

288 x 216

模组尺寸

Module Size

288 x   216

LED封装模式

LED Encapsulation mode

SMD2121

LED封装模式

LED Encapsulation mode

SMD1515

箱体分辨率

Cabinet Resolution

224X756

箱体分辨率

Cabinet Resolution

320X1080

产品尺寸(mm)

Product size

576mm x1944mm

产品尺寸(mm)

Product size

576mm   x1944mm

箱体材质

Cabinet material

铝合金Aluminium alloy

箱体材质

Cabinet material

铝合金Aluminium alloy

箱体颜色

Cabinet color

黑色(默认)Black (default)

箱体颜色

Cabinet color

黑色(默认)Black (default)

箱体重量(KG)

Weight/Cabinet(KG)

35KG

箱体重量(KG)

Weight/Cabinet(KG)

35KG

显示亮度(nits)

Brightness(nits)

≥1200cd/m2

显示亮度(nits)

Brightness(nits)

≥1200cd/m2

扫描方式

Drive Mode

1月28日

扫描方式

Drive Mode

1/32

最大功耗/㎡

Maximum Power Consumption

600W/m2

最大功耗/㎡

Maximum Power Consumption

600W/m2

播放功耗/㎡

Average Power Consumption

200W/m2

播放功耗/㎡

Average Power Consumption

200W/m2
