深圳市航天宇光电有限公司

因为专注 所以专业

高端定制,创意显示


超薄灯杆屏

Ultrathin Lamppost LED display Screen

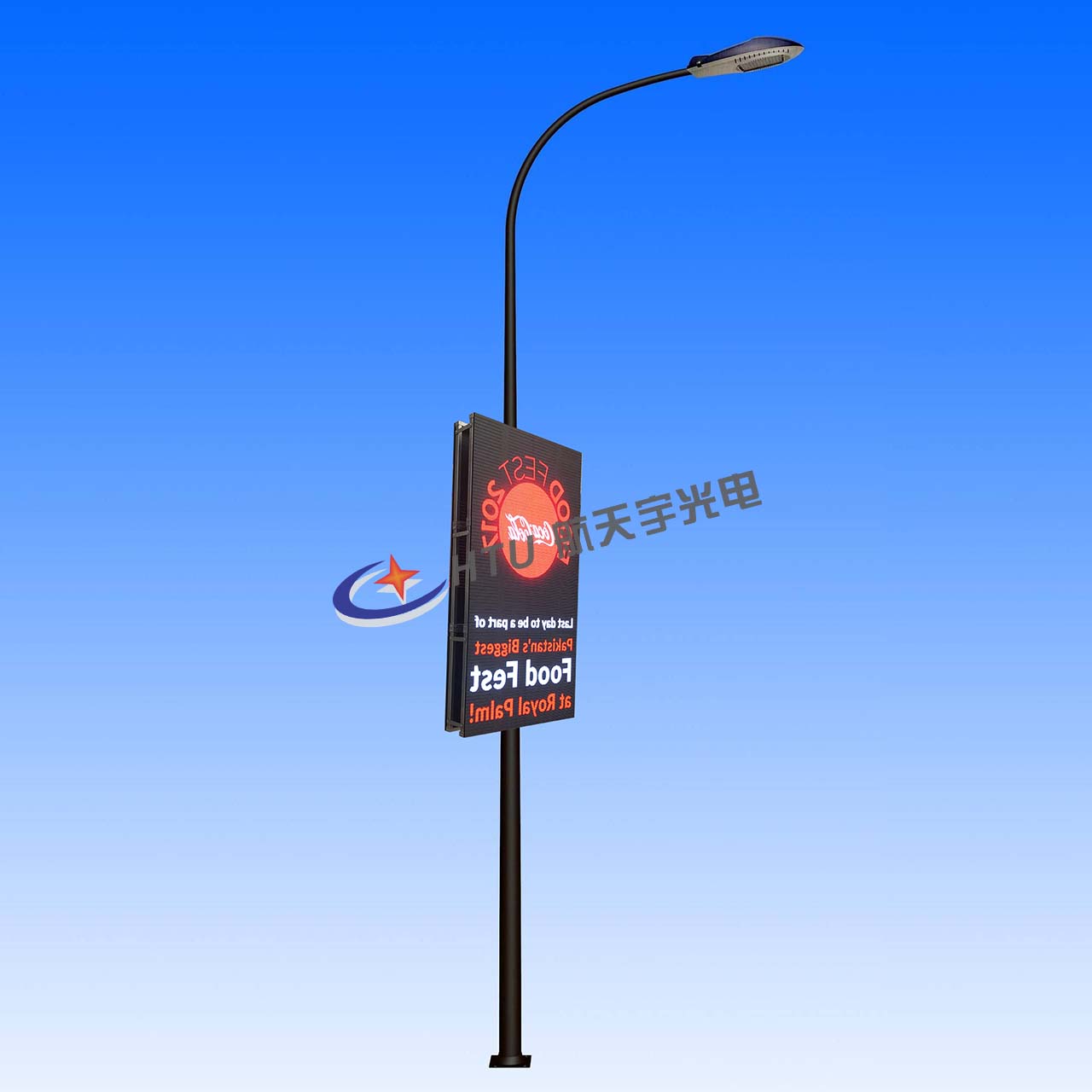

航天宇公司的超薄灯杆屏是专为恶劣使用环境研发的一款防水、防潮、透光、透风、超薄的LED屏幕,又称灯杆广告机、灯杆电子海报、LED显示屏。超薄灯杆屏使您能够通过RJ45WiFi3GUSBHDMIPCAndroid设备连接起来;超薄灯杆屏主要应用在道路两边,可以安装在灯杆或立柱上,并且可以多块屏幕集群管理,播放内容可同步显示。超薄轻便,节省运输成本;安装快捷,可以安装简单的灯杆上;透风设计,可以有效减轻风压,可以安装在风力较大的海边和高原;清晰度高,无缝显示,可完美呈现播放内容;

HTU company's ultra-thin lamp screen is a waterproof, moisture-proof, transparent, translucent, ultra thin LED screen for the bad use of the environment, also called the lamppost advertising machine, light pole electronic poster, LED display.The ultra thin pole screen enables you to connect to PC or Android devices through RJ45, WiFi, 3G, USB or HDMI.The ultra thin lamp pole screen is mainly applied to both sides of the road, and can be mounted on a lamp post or column, and can be managed by multiple screen clusters, and the contents can be displayed synchronously.Ultra thin and portable, saving transportation cost;Fast installation, can be installed on a simple lamp pole;The ventilation design can effectively reduce the wind pressure and can be installed on the seaside and highland with strong wind.High definition, seamless display, perfect presentation of playback content;



超薄灯杆屏Ultrathin Lamppost LED display Screen

产品特点(Product Features:

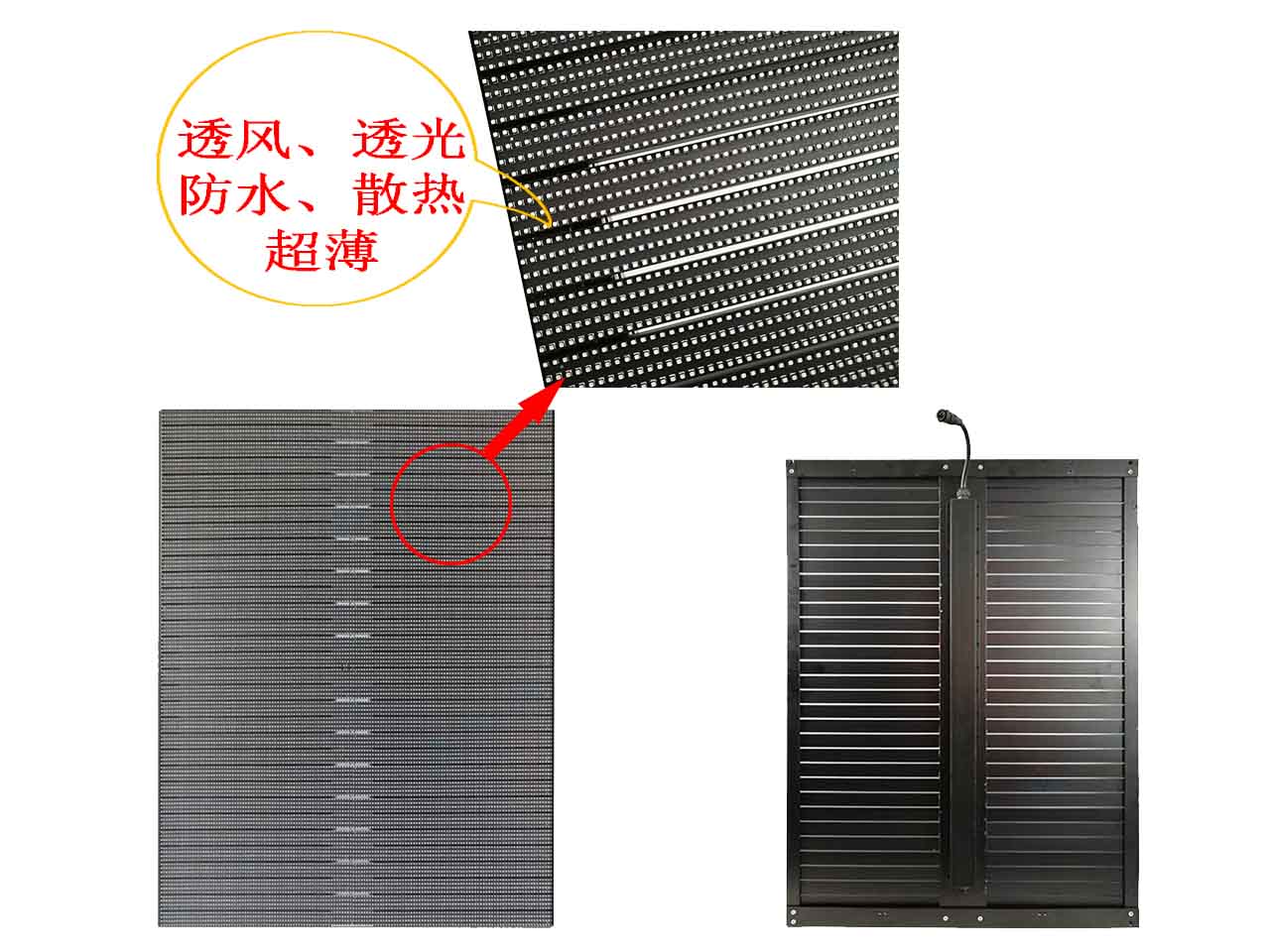

1、超薄灯杆屏是专为恶劣使用环境研发的一款防水、防潮、透光、透风、超薄的LED屏幕,又称灯杆广告机、灯杆电子海报、LED显示屏;

2、防水、防尘、耐低温、高温、潮湿,可长期用于各种恶劣的户外环境;

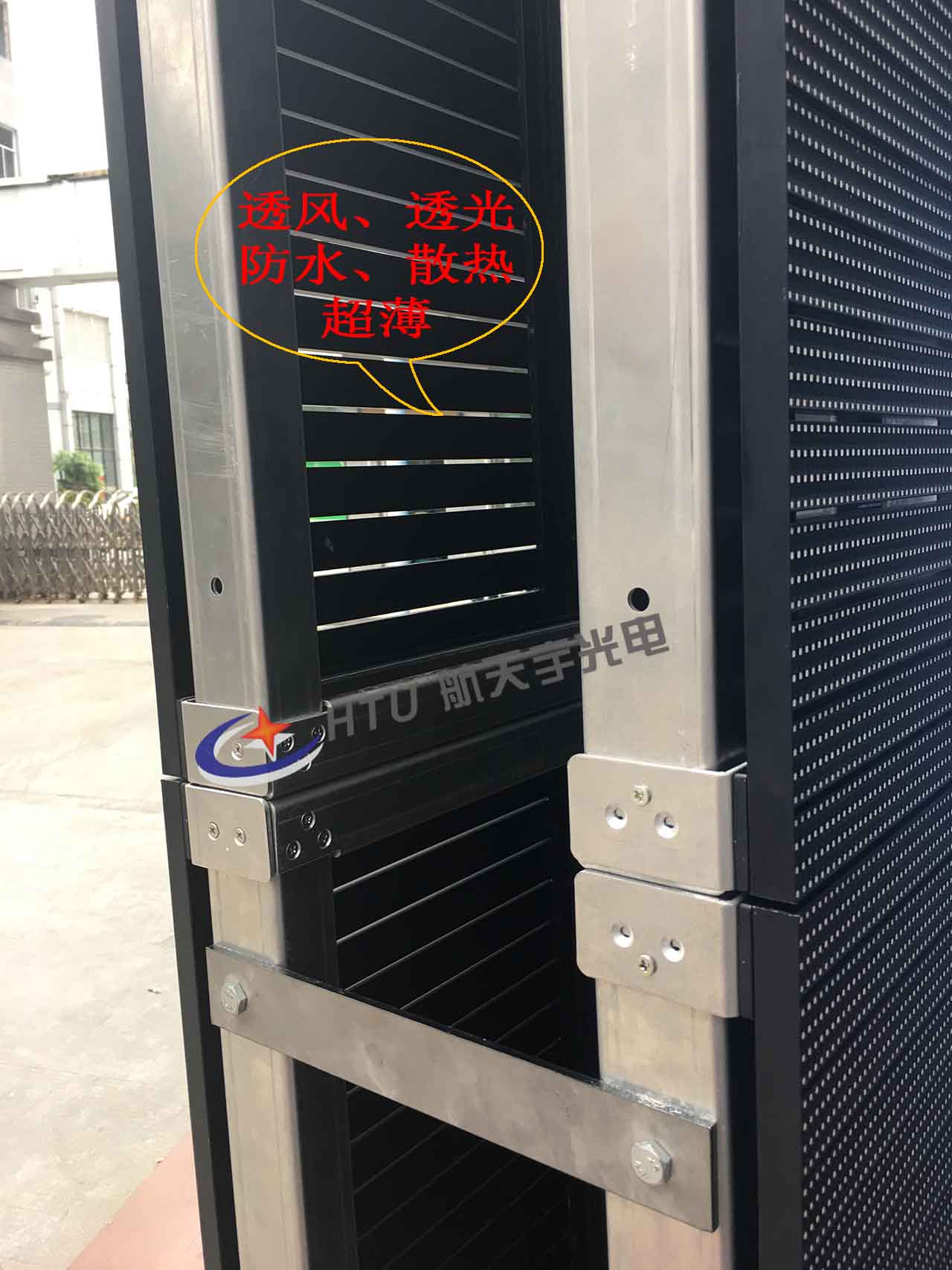

3、透风设计,散热性好,重量轻;

4、重量轻、超薄,安装维修方便,无需结构,节省成本,提高效率;

5、透风性强,有效抵御风压,可安装在常有大风区域。

6、多种控制方式,可采用U盘、WIFI、手机、网线。

7、亮度高,专为户外设计,亮度高达6000尼特。

1. The ultra thin lamp screen is a waterproof, moistureproof, transparent, ventilated, ultra thin LED screen for the bad use of the environment, also called the lamppost advertising machine, the light pole electronic posters, and the LED display.

2, waterproof, dust-proof, low temperature, high temperature, humidity, can be used for a variety of harsh outdoor environment for a long time.

3, ventilation design, good heat dissipation, light weight;

4, light weight, ultra-thin, easy installation and maintenance, no structure, cost savings and efficiency.

5, strong air permeability, effective resistance to wind pressure, can be installed in often windy areas.

6, a variety of control methods, can use U disk, WIFI, mobile phone, network cable.

7, high brightness, specially designed for outdoor, with brightness as high as 6000 nite.



应用(Application:

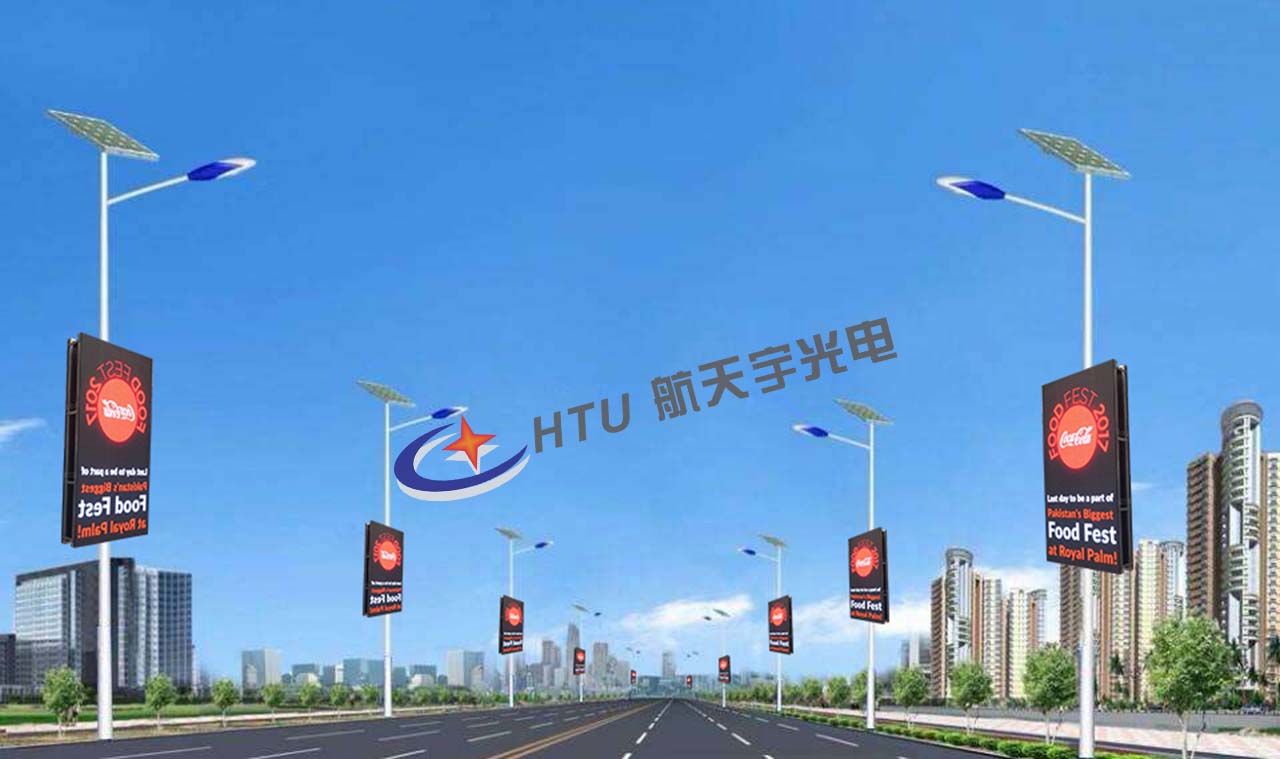

超薄灯杆屏可应用于以下领域:道路、步行商业街、广场、商业中心、购物中心的广告和信息显示、公共设施、会展中心、演出、租赁和广告中心,博物馆,教堂,运输和公共信息显示系统。

The ultra-thin lamp screen can be used in the following fields: Road, pedestrian mall, square, commercial center, shopping center advertising and information display, public facilities, exhibition center, performance, rental and advertising center, museum, church, transportation and public information display system.

超薄LED灯杆屏

Ultrathin Lamppost LED display Screen

型号

Module No.

HTU-TD0507

HTU-TD0810

HTU-TD0812

HTU-TD1010

HTU-TS0507

HTU-TS0810

HTU-TS0812

HTU-TS1010

显示类别

Display category

双面显示

Double-sided Display

单面显示

Single   Side Display

像素间距

Pixel Pitch

5.2mm*7.81mm

7.81mm*10mm

7.81mm*12.5mm

10mm*10mm

5.8mm*7.81mm

7.81mm*10mm

7.81mm*12.5mm

10mm*10mm

通透度

Transparency

10%

15%

20%

25%

10%

15%

20%

25%

像素点/㎡

Pixel/

22076

12804

10243

10000

22076

12804

10243

10000

箱体尺寸(mm)

Cabinet Size(mm)

1500*3000

1500*3000

1500*3000

1500*3000

1500*3000

1500*3000

1500*3000

1500*3000

箱体分辨率

Cabinet Resolution

288*384

192*300

192*240

150*300

256*384

192*300

192*240

150*300

最大功耗/㎡

Maximum Power Consumption

800W

800W

800W

800W

800W

800W

800W

800W

播放功耗/㎡

Average Power Consumption

260W

260W

260W

260W

260W

260W

260W

260W

扫描方式

Drive Mode

 1/8

 1/4

 1/4

 1/4

 1/4

 1/4

 1/4

 1/4

显示亮度(nits)

Brightness(nits)

≥6000

≥6000

≥6000

≥6000

≥6000

≥6000

≥6000

≥6000

LED封装模式

LED Encapsulation mode

2727RGB

2727RGB

2727RGB

2727RGB

2727RGB

2727RGB

2727RGB

2727RGB
