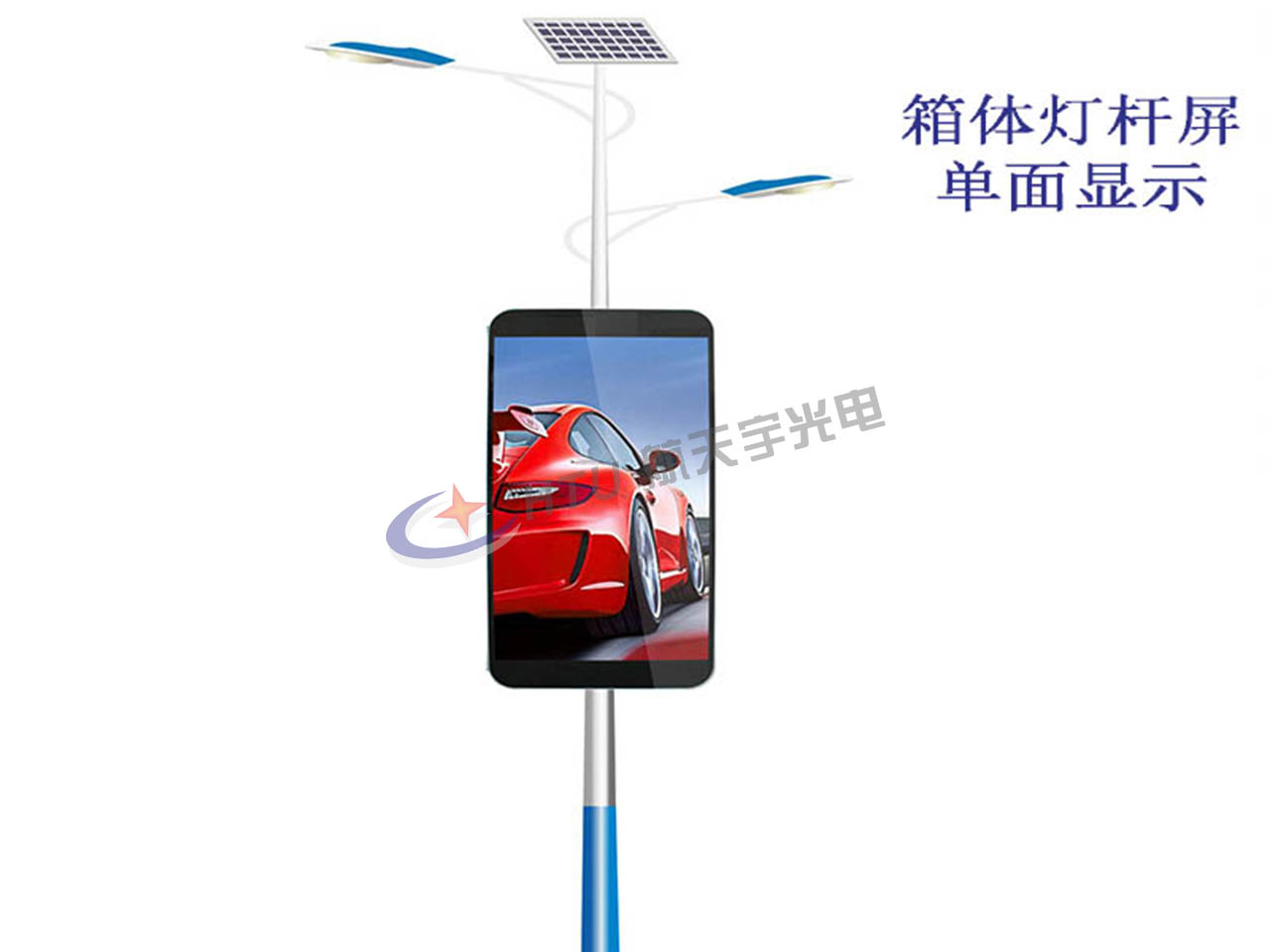

箱体灯杆屏

Iron cabinet Lamppost LED display Screen



航天宇公司的箱体灯杆屏是专为恶劣使用环境研发的一款防水、防潮的LED屏幕,又称灯杆广告机、灯杆电子海报、LED显示屏。箱体灯杆屏使您能够通过RJ45WiFi3GUSBHDMIPCAndroid设备连接起来;箱体灯杆屏主要应用在道路两边,可以安装在灯杆或立柱上,并且可以多块屏幕集群管理,播放内容可同步显示。安装快捷,可以安装简单的灯杆上;清晰度高,无缝显示,可完美呈现播放内容;

HTU company's cabinet Lamppost LED display Screen is a waterproof, moisture-proof LED screen for the bad use of the environment, also called the lamppost advertising machine, light pole electronic poster, LED display. cabinet Lamppost LED display Screen enables you to connect to PC or Android devices through RJ45, WiFi, 3G, USB or HDMI. cabinet Lamppost LED display Screen is mainly applied to both sides of the road, and can be mounted on a lamp post or column, and can be managed by multiple screen clusters, and the contents can be displayed synchronously.;Fast installation, can be installed on a simple lamp pole;High definition, seamless display, perfect presentation of playback content;



箱体灯杆屏cabinet Lamppost LED display Screen

产品特点(Product Features:

1、箱体灯杆屏是专为恶劣使用环境研发的一款防水、防潮的LED屏幕,又称灯杆广告机、灯杆电子海报、LED显示屏;

2、防水、防尘、耐低温、高温、潮湿,可长期用于各种恶劣的户外环境;

3、多种控制方式,可采用U盘、WIFI、手机、网线。控制简单,可通过远程客户端程序控制,随时发布节目。

4、亮度高,专为户外设计,亮度高达6000尼特。

5、结构简单,安装方便。

1, Cabinet Lamppost LED display Screen is a waterproof and moisture-proof LED screen for the bad use of the environment, also called the lamppost advertising machine, light pole electronic posters, LED display;

2, waterproof, dust-proof, low temperature, high temperature, humidity, can be used for a variety of harsh outdoor environment for a long time.

3, a variety of control methods, can use U disk, WIFI, mobile phone, network cable. The control is simple, and can be released at any time through remote client program control.

4, high brightness, specially designed for outdoor, with brightness as high as 6000 nite.

5. The structure is simple and the installation is convenient.

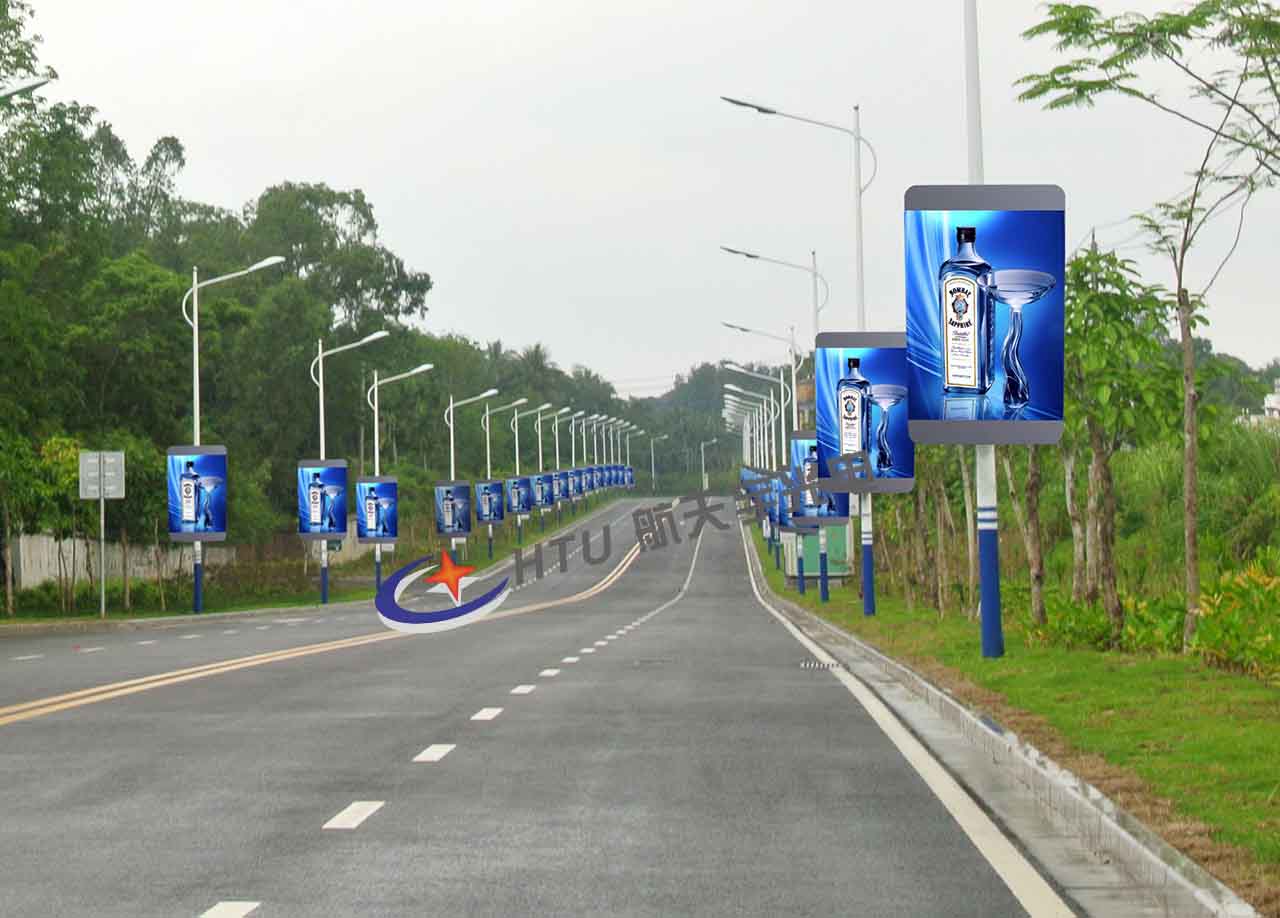

应用(Application:

箱体灯杆屏可应用于以下领域:道路、步行商业街、广场、商业中心、购物中心的广告和信息显示、公共设施、会展中心、演出、租赁和广告中心,博物馆,教堂,运输和公共信息显示系统。

Cabinet Lamppost LED display Screen can be used in the following fields: Road, pedestrian mall, square, commercial center, shopping center advertising and information display, public facilities, exhibition center, performance, rental and advertising center, museum, church, transportation and public information display system.

箱体LED灯杆屏

Iron cabinet Lamppost LED display Screen

型号

Module No.

HTU-PH03

HTU-PH04

HTU-PH03

HTU-PH04

显示类别

Display category

双面显示

Double-sided Display

单面显示

Single   Side Display

像素间距

Pixel Pitch

3mm

4mm

3mm

4mm

像素点/㎡

Pixel/

111111

62500

111111

62500

外观尺寸

Product Size

820*1596

1010*2410

820*1596

1010*2410

显示尺寸(mm)

Display size(mm)

768*1344

960*2080

768*1344

960*2080

显示分辨率

Display Resolution

256*448

240*520

256*448

240*520

最大功耗/㎡

Maximum Power Consumption

800W

800W

800W

800W

播放功耗/㎡

Average Power Consumption

260W

260W

260W

260W

扫描方式

Drive Mode

 1/16

 1/10

 1/16

 1/10

显示亮度(nits)

Brightness(nits)

≥4500

≥5000

≥4500

≥5000

LED封装模式

LED Encapsulation mode

SMD1921

SMD1921

SMD1921

SMD1921
